800W LED, Cart Mounted w/4-stage mast assembly
GBBAT8BM
GloBug Lighting Systems
Diffuser Balloon Light Cart
Battery Powered
Sustainable lighting for a brighter future!
The all-new emission free GloBug™ battery-powered, compact, cart-mounted, balloon light cart is the ideal solution for a variety of applications, including roadwork, events, construction, search and rescue, law enforcement support and more. The lithium-ion batteries features fast charge times, higher energy density and long run times, making it a great choice for any project.
Battery Powered Eco Friendly
ZERO EMISSIONS
QUIET OPERATION
LESS MAINTENANCE
Long run time - up to 23.5 hours
800W – 13 hours
600W – 16.5 hours
400W – 23.5 hours

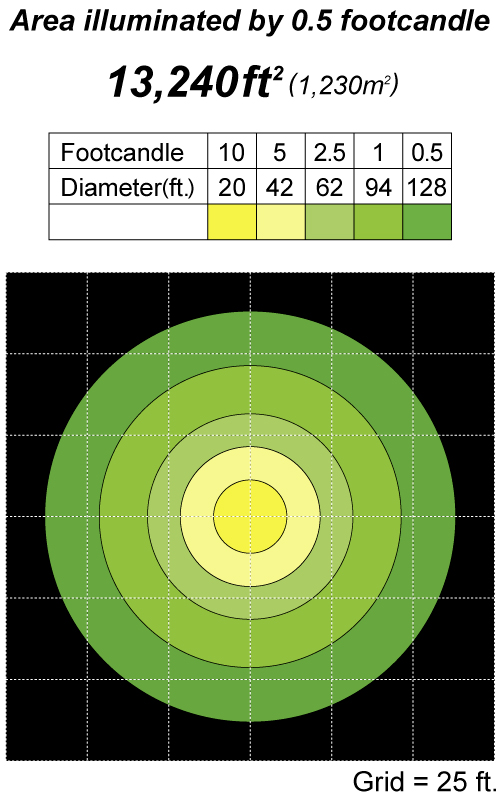

360°Glare-Free Illumination
Glare free illumination up to 130 feet diameter and 110,000 lumen shadow-less light output.
Excellent Maneuverability
Manual cart can allows to maneuver by one person and make sharp turn.
Polycarbonate Cover for LED lamps
The Ultimate LED Protector for Lighting Fixtures, inspired by riot shield material.
Safety Lock Mast
Applied for sudden descent in case of emmergency.
252 inch height with Aluminum Mast
Multi-sectional aluminum vertical mast for strength and corrosion resistance.
Integrated Balloon Cover
The protective cover can be folded and stored on the top of the balloon assembly during operations.
No puncture tires with 2 casters
Double-Handed Winch
Optimized for raising and lowering the mast manually.
Easy Jack Stabilizers
4 extendable and height adjustable stabilizers
Can be extended and set up in seconds.
Forklift Pockets
Handy forklift pockets of 2 directions for easy transportation.
Lifting Eye
There are three hanging points, depending on the condition of the cart.
| Model | GBBAT8BM |
|---|---|
| Input Voltage | 120 VAC |
| Frequency | 50 Hz / 60 Hz |
| Lamp | |
| Lamp Type | 800 W LED |
| Dimming Controls | 3-Stages : 800W / 600W / 400W |
| Total Luminous Flux | 110,000lm / 90,000lm / 67,000lm |
| Operating Temperature Range | 14 to 104℉ (-10 to 40℃) |
| Battery | |
| Voltage | 40 to 58.2 VDC |
| Battery Capacity | 230 Ah |
| Inverter Rated output power | 1,500 W |
| Mast |
|
| Mast Type | 4-Stages telescopic aluminum mast |
| Operation | Manual |
| Cart | |
| Tire | Front tires: Outer diameter 13.8 in (350 mm) solid x 2 Caster tires: Outer diameter 7.9 in (200 mm) solid x 2 |
| Brake | Rear 2 wheel caster brake |
| Stabilizer | Front and rear drawer type x 4 |
| Dimensions | |
| Operating (LxWxH) | 93in x 62in x 106 to 252in |
| Storage (LxWxH) | 46.5in x 30.7in x 82.6in |
| Total Weight | 798 lbs (362 kg) |
- Specification
-
Model GBBAT8BM Input Voltage 120 VAC Frequency 50 Hz / 60 Hz Lamp Lamp Type 800 W LED Dimming Controls 3-Stages : 800W / 600W / 400W Total Luminous Flux 110,000lm / 90,000lm / 67,000lm Operating Temperature Range 14 to 104℉ (-10 to 40℃) Battery
Voltage 40 to 58.2 VDC Battery Capacity 230 Ah Inverter Rated output power 1,500 W Mast
Mast Type 4-Stages telescopic aluminum mast Operation Manual Cart Tire Front tires: Outer diameter 13.8 in (350 mm) solid x 2
Caster tires: Outer diameter 7.9 in (200 mm) solid x 2Brake Rear 2 wheel caster brake Stabilizer Front and rear drawer type x 4 Dimensions Operating (LxWxH) 93in x 62in x 106 to 252in Storage (LxWxH) 46.5in x 30.7in x 82.6in Total Weight 798 lbs (362 kg)
