800W LED, Light Cart mounted w/3-stage mast assembly
GBC8LED
GloBug Lighting Systems
Diffuser Balloon Light Cart
AC or Generator Powered

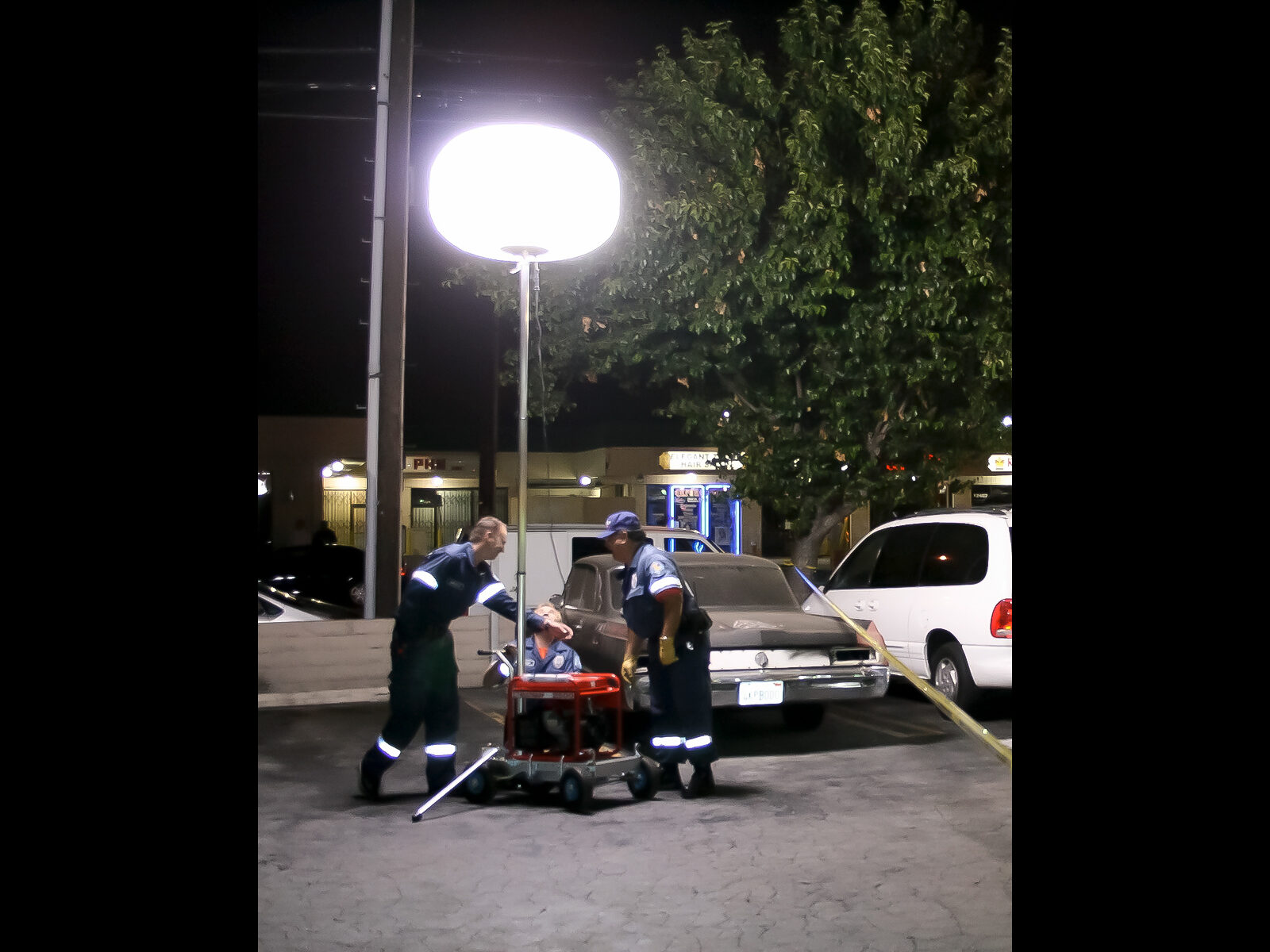

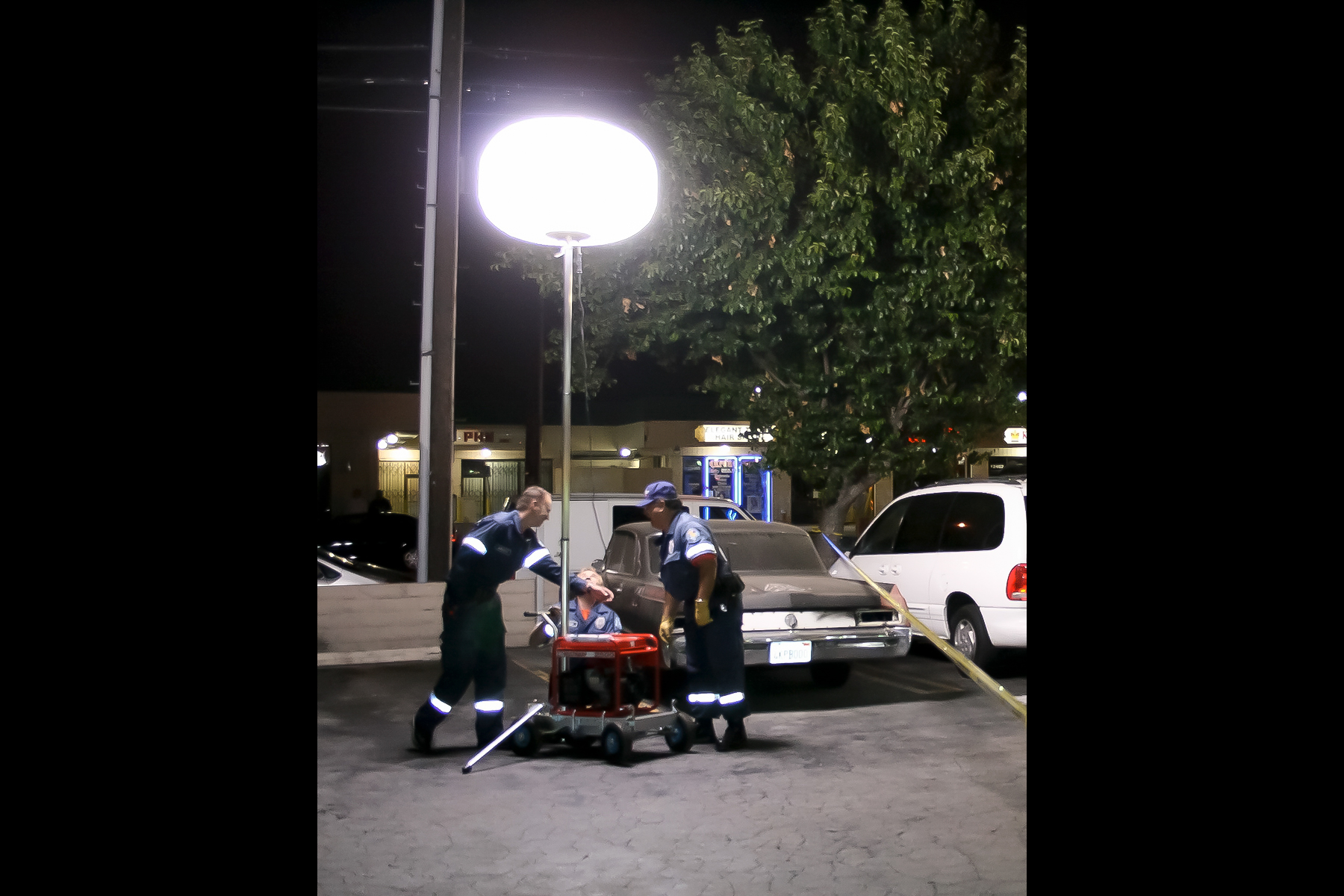

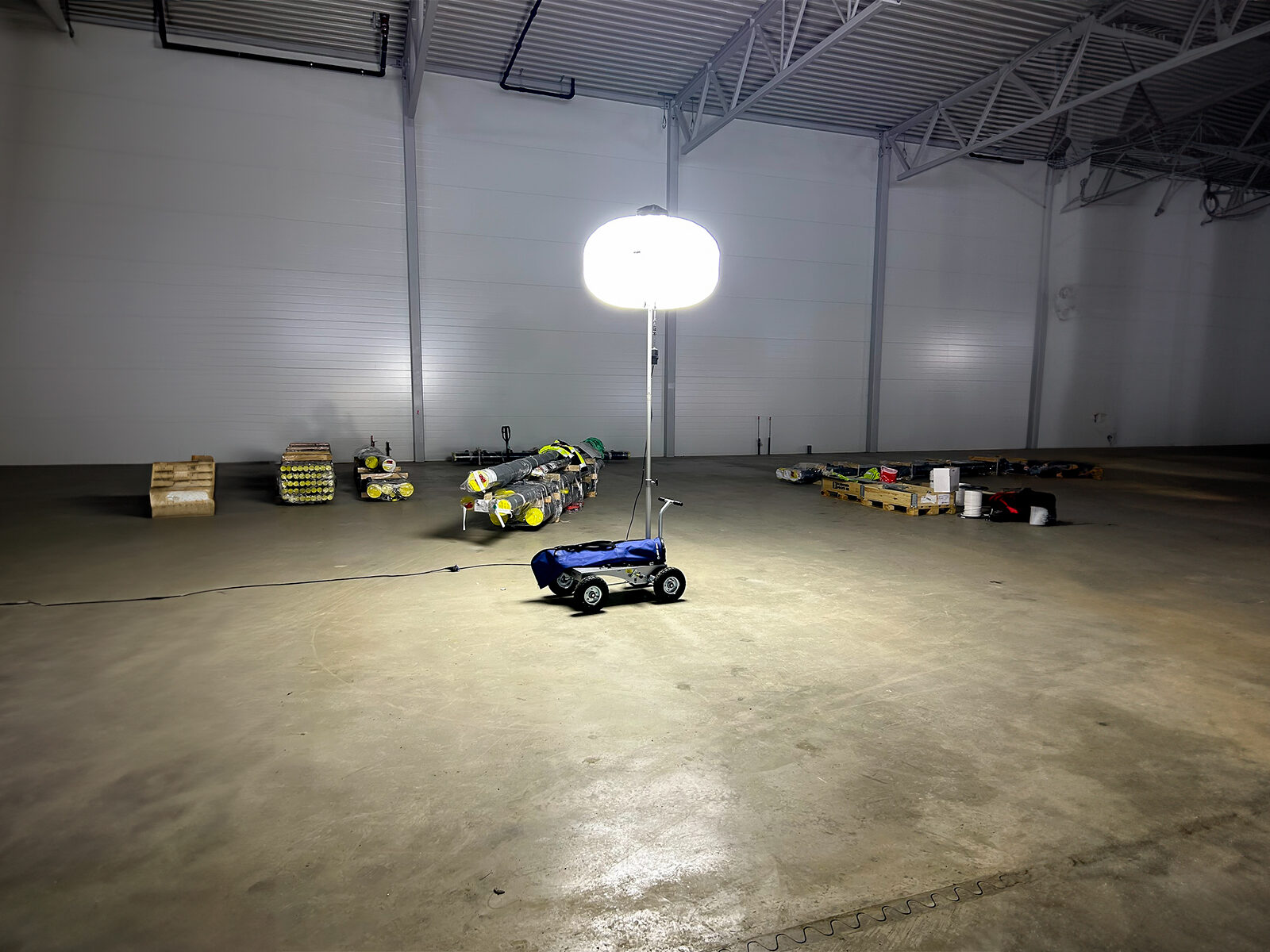

The ideal combinaion of the innovative GBC8LED GloBug supported by an industrial grade cart for easy transportation and operational flexibility! The Steerable cart sets up without tools, includes a 3-stage air assited mast assembly and provides the perfect platform to safely secure a selected portable generator for off-site lighting applications.
360°Glare-Free Illumination

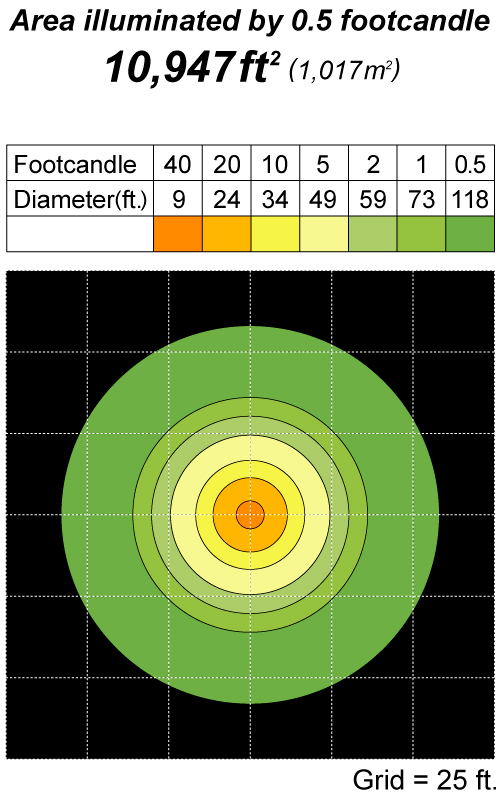

Glare free illumination up to 120 feet diameter and 110,000 lumen shadow-less light output.
Easy Set Up
Industrial grade cart sets up and disassembled without tools.
Various Generator mount
Various generators can be mounted with fixings or belt.
Excellent Maneuverability
Steerable design guarantees operational flexibility. Reverse handle mechanism also maximises the force flow. These ensure a high degree of maneuverability.
Polycarbonate Cover for LED lamps
The Ultimate LED Protector for Lighting Fixtures, inspired by riot shield material.
Air-Assisted Mast
The mast is designed to be retracted slowly so that the mast will not fall rapidly when released. This feature ensures the safety of the operator and around.
126 inch height with Aluminum Mast
Aluminum vertical mast for strength and corrosion resistance.
Integrated Balloon Cover
The protective cover can be folded and stored on the top of the balloon assembly during operations.
Pneumatic Tires
With cushioned tyres, it can glide through the rough and bumpy terrain of gravel roads. The tyres also function as a buffer to protect the equipment from damage.
One-Step Foot Brake
It is easy to apply the brake as it only requires one step and minimum effort.
Outriggers
The cart is supported by three outriggers which stabilise the unit during the operation.
| Model | GBC8LED |
|---|---|
| Input Voltage | 120 VAC |
| Frequency | 50 Hz / 60Hz |
| Max. Current | 7.2 Amps |
| Lamp | |
| Lamp Type | 800 W LED |
| Dimming Controls | 3-Stages : 800W / 600W / 400W |
| Total Luminous Flux | 110,000lm / 90,000lm / 67,000lm |
| Operating Temperature Range | 14 to 104℉ (-10 to 40℃) |
| Mast | |
| Mast Type | 3-Stages telescopic air-assisted mast |
| Operation | Manual |
| Cart | |
| Tire | Outer diameter 11.8 in (300 mm) pneumatic x 4 |
| Brake | One-step foot brake |
| Stabilizer | 3 Support outriggers |
| Dimensions | |
| Operating (LxWxH) | 52.2in x 51.2in x 73.6 to 126in |
| Storage (LxWxH) | 40.4in x 27.6in x 33.3in |
| Total Weight | 112.2 lbs (50.9 kg) |
| Appropriate Generator | 870W or more |
