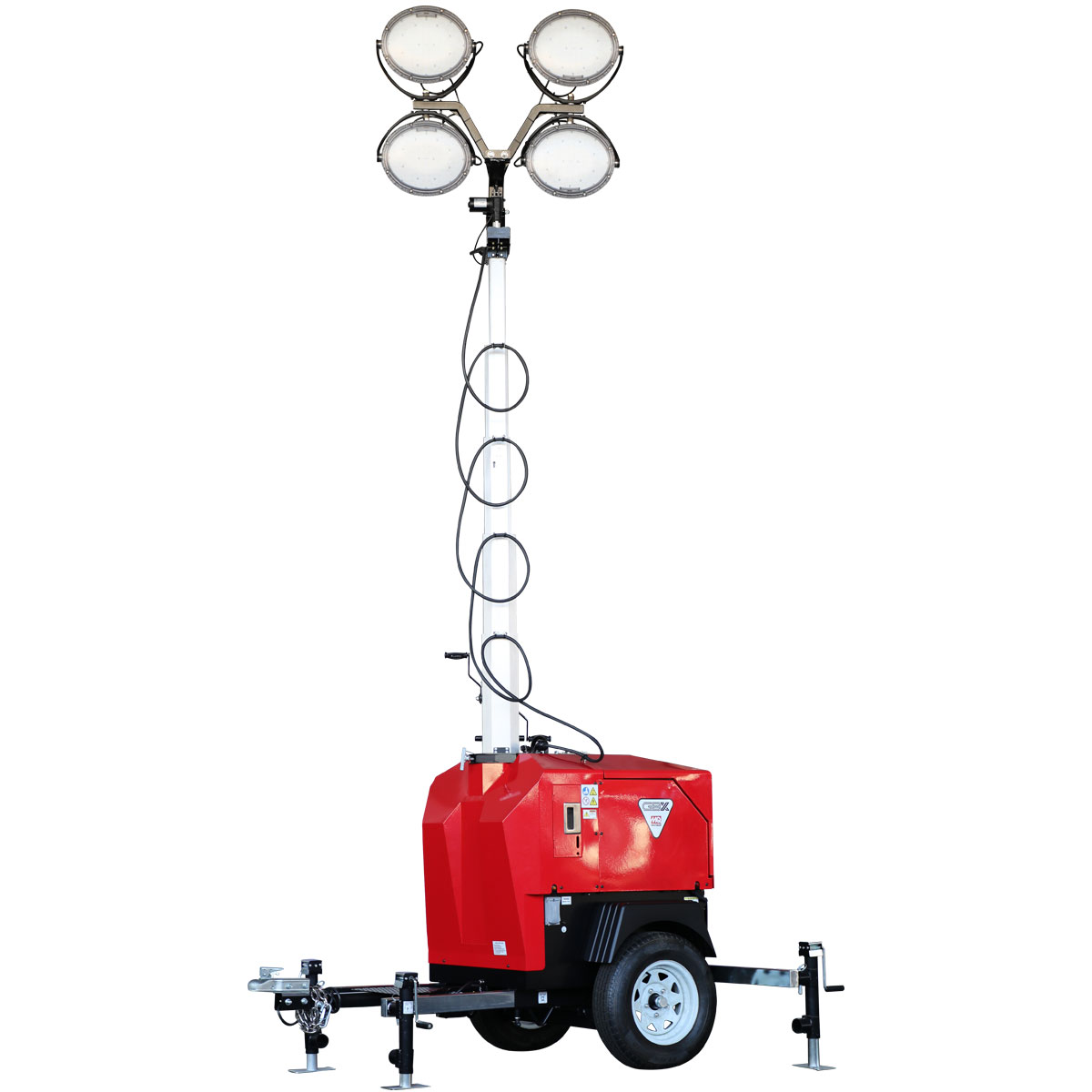

1,200W (4X300W) LED Light Tower
GBX12SK
GloBug Lighting Systems
KUBOTA Z482 Engine
The GBX12SK 4-Spot LED GloBug Light Tower is a powerful and compact mobile lighting source providing exceptional illuminating performance. The [4] x 300W LED lamps provide a clear, and dominant lighting projection of over 200 feet and 212,000 lumen. The unit is powered by the popular and efficient EPA/CARB certified KUBOTA Z482 diesel engine that provides an operating time of 200 hours. The easy raise/lower vertical mast assembly raises to a MAX height of 25.8 ft and has a stowage height of 7.5 ft. The trailer frame is DOT/NHSTA approved and has forklift pockets and four adjustable jack stands for support.
KUBOTA Z482 Engine
The unit is powered by the poular and efficient EPA/CARB certified KUBOTA Z482 diesel engine. 45 Gallon fuel capacity provides 200 operating hours of light.
Brightest LED Lighting System

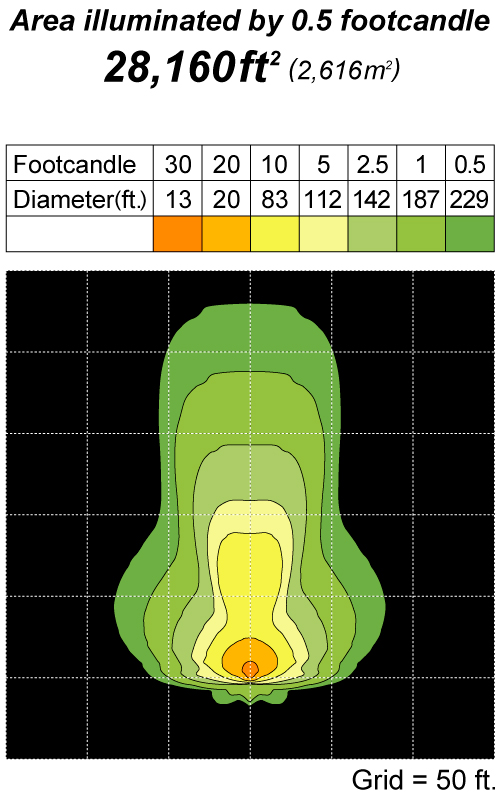

4 × 300W LED provide over 200 ft illumination coverage.
Compact Design
Smoother lines and a shorter body for ease of transport.
Environmental-Friendly
Fluid containment system is built-in as a standard feature.
Polycarbonate Cover for LED lamps
The Ultimate LED Protector for Lighting Fixtures, inspired by riot shield material.
Safety Lock Mast
Applied for sudden descent in case of emmergency.
309 inch height with Aluminum Mast
Multi-sectional aluminum vertical mast for strength and corrosion resistance.
Double-Handed Winch
Optimized for raising and lowering the mast manually.
Easy Jack Stabilizers
4 extendable and height adjustable stabilizers.
Can be extended and set up in seconds.
Forklift Pockets
Handy forklift pockets of 4 directions for easy transportation.
| Model | GBX12SK |
|---|---|
| Input Voltage | 120 VAC |
| Frequency | 50 Hz / 60 Hz |
| Max. Current | 11 Amps |
| Lamp | |
| Lamp Type | 1,200 W (4X300W) LED |
| Total Luminous Flux | 212,000 lm |
| Operating Temperature Range | 14 to 104℉ (-10 to 40℃) |
| Mast | |
| Mast Type | 5-Stages telescopic mast |
| Height | 23 ft (7 m) |
| Rotation | 359° |
| Operation | Manual |
| Trailer | |
| Tire | Outer diameter 23.6 in (600 mm) |
| Stabilizer | Front and rear drawer type x 4 |
| Wind Stability | 45 mph (20 m/S) |
| Dimensions | |
| Operating (LxWxH) | 93.3in x 96.5in x 121 to 309in |
| Storage (LxWxH) | 58.3in x 47.2in x 90.5in |
| Total Weight | 1,288 lbs (584 kg) |
| Engine Model | Kubota Z482 - E4B - LTLE - 2 |
|---|---|
| Engine Type | 2- Cy. Water - Cooled |
| EPA Certification | Tier4 f / CARB |
| Engine Output | 4,600 W / 1,800 rpm |
| Generator Output | 3,000 VA |
| External Receptacles | Duplex 120 V / 15 A GFCI |
| Starting Method | Electric Start |
| Fuel Type | Diesel (Ultra Low Sulfur Fuel Diesel) |
| Fuel Capacity | 45 Gal (170 L) |
| Engine Protection | Hight temp. / Low Oil |
| Dry Weight | 1,288 lb (584 kg) |
- Light Tower Specification
-
Model GBX12SK Input Voltage 120 VAC Frequency 50 Hz / 60 Hz Max. Current 11 Amps Lamp Lamp Type 1,200 W (4X300W) LED Total Luminous Flux 212,000 lm Operating Temperature Range 14 to 104℉ (-10 to 40℃) Mast Mast Type 5-Stages telescopic mast Height 23 ft (7 m) Rotation 359° Operation Manual Trailer Tire Outer diameter 23.6 in (600 mm) Stabilizer Front and rear drawer type x 4 Wind Stability 45 mph (20 m/S) Dimensions Operating (LxWxH) 93.3in x 96.5in x 121 to 309in Storage (LxWxH) 58.3in x 47.2in x 90.5in
Total Weight 1,288 lbs (584 kg)
- Generator Specification
-
Engine Model Kubota Z482 - E4B - LTLE - 2 Engine Type 2- Cy. Water - Cooled EPA Certification Tier4 f / CARB Engine Output 4,600 W / 1,800 rpm Generator Output 3,000 VA External Receptacles Duplex 120 V / 15 A GFCI Starting Method Electric Start Fuel Type Diesel (Ultra Low Sulfur Fuel Diesel) Fuel Capacity 45 Gal (170 L) Engine Protection Hight temp. / Low Oil Dry Weight 1,288 lb (584 kg)
